アルミニウムの女性溶接可能なバン

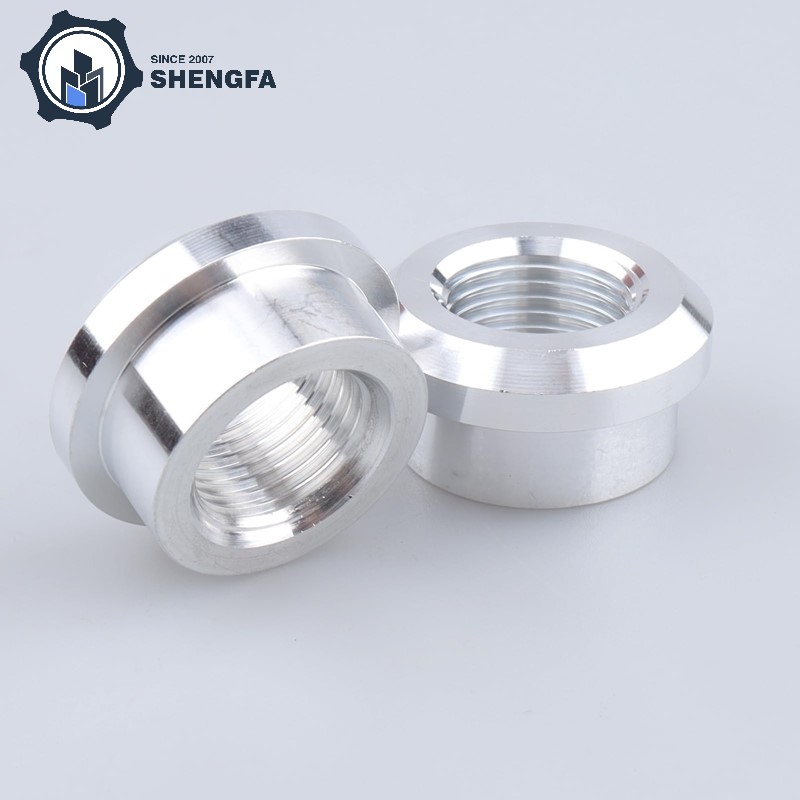

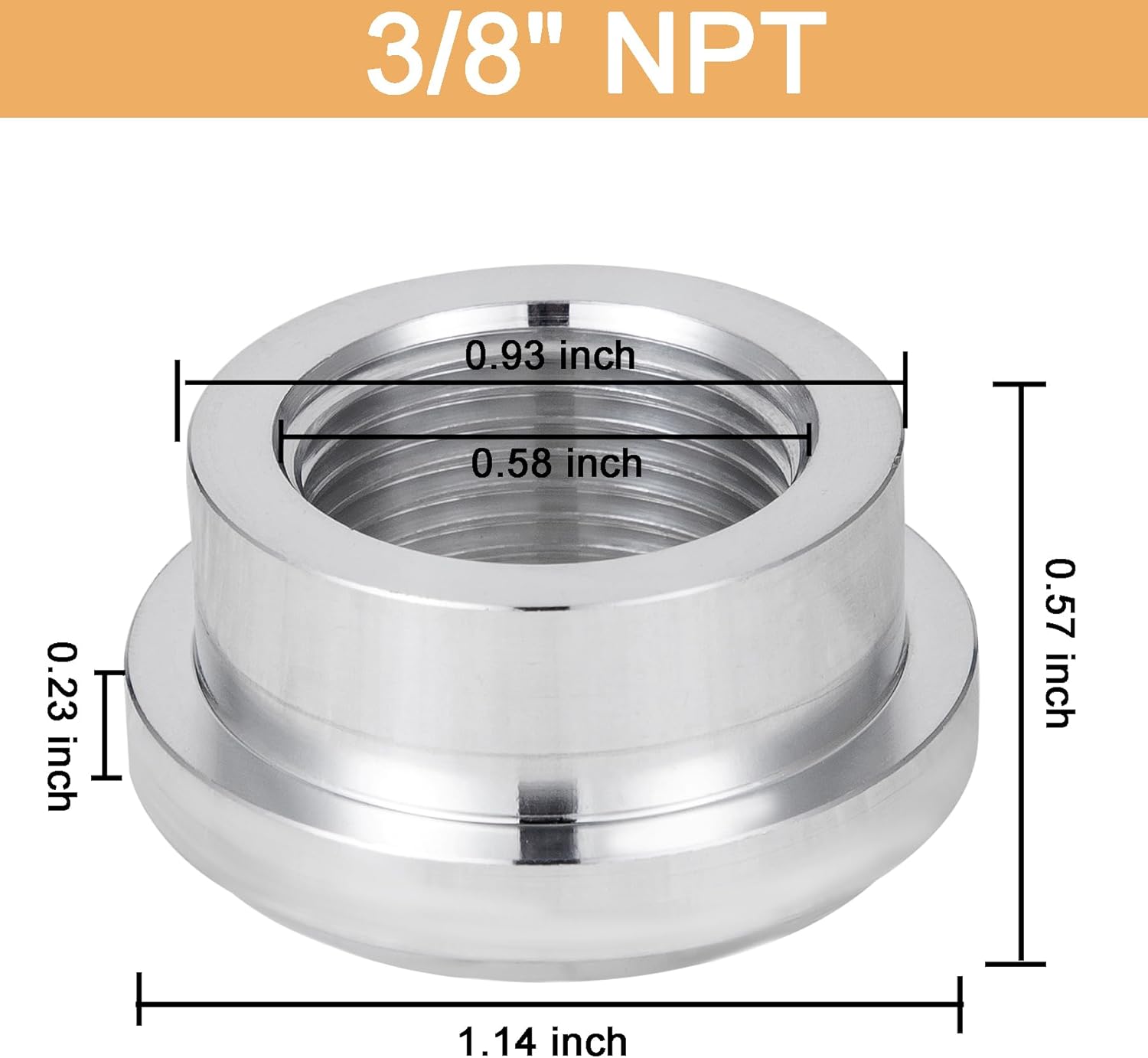

Our female aluminum bungs feature 3 / 8 NPT threads and a step-by-step design to make the welding process easier and safer. Its excellent engineering guarantees optimal thread alignment, leak-free connectivity, and seamless integration into your projects.

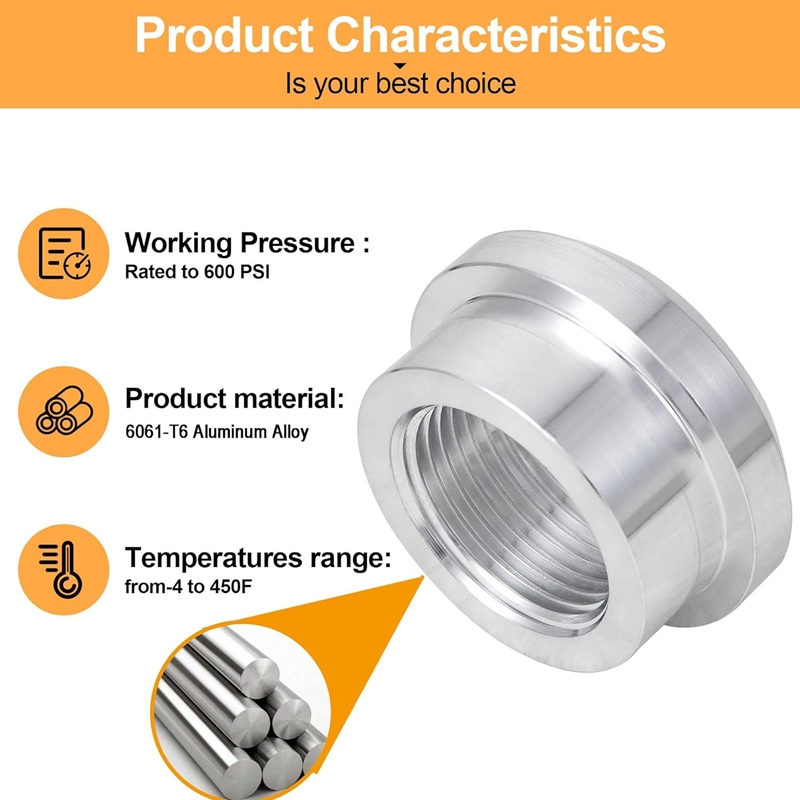

The bung is composed of lightweight 6061-T6 aluminum billets and is known for its excellent strength-to-weight ratio. It is done with a hard anodic oxidation coating to improve resistance to corrosion, wear and environmental exposure. Whether it is welded to the aluminum tank, the intercooler pipeline, or the intake manifold, it is carried out under pressure.

Technical Specifications of our Aluminum Female Weldable Bung

The core of our design concept is the commitment to accuracy and performance. The aluminum female weldable bung is made of 6061-T6 aluminum alloy solid blank by numerical control processing. This material is highly trusted in aerospace, racing sports and industrial engineering.

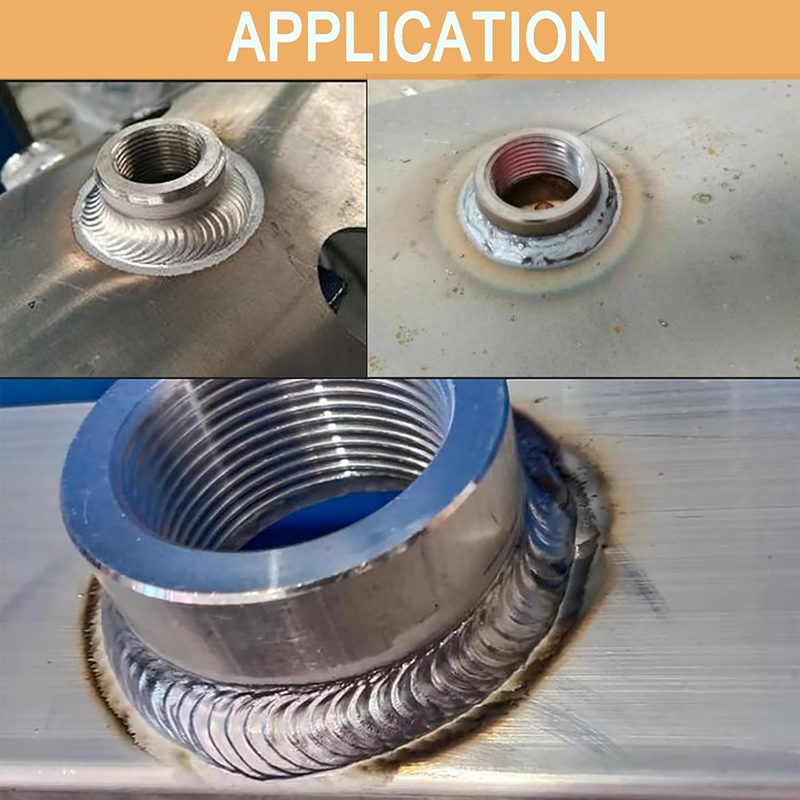

The stepped design ensures greater weld accuracy, allowing flush and clean fit on your surface. It minimizes burn-through and warpage during welding, especially when working with thin-walled aluminum tanks or pipes. Whether TIG welding or MIG welding, the result of each welding is a solid, professional-grade finish.

Thanks to its superior materials and robust design, this aluminum female weldable bung is used in a wide range of industrial and custom manufacturing projects, including:

• Fuel Tank - Create thread access for fuel return lines, sensors, and vents.
• Intercooler piping - add pressure sensors, relief valves or custom vacuum piping.
• Intake manifold - used for pressure gauge or secondary injector port welding.
• Catch Cans & Overflow Tanks - high-performance connectors integrated for custom fluid routing.
• Oil system - add exhaust pipe or return pipe for turbocharger or oil cooler.
• Custom building - ideal choice for hot rods, rafters, racing cars and industrial machinery.

Aluminum female weldable bung are fully compatible many brands’ accessories and adapters, and support almost all performance grades of hose terminals and fuel lines on the market.

Why Ningbo Shengfa Hardware uses 6061-T6 aluminum billet?

Because when you weld something to your custom fuel tank or intake manifold, it must last. 6061-T6 is favored for its excellent mechanical strength, corrosion resistance and thermal conductivity. Combined with our anodizing treatment, the result is a dirt that doesn't rust, degrade, or leak - even in aggressive environments or long-term exposure to alcohol-based fuels such as ethanol or E85.

At a maximum operating pressure of 1500 PSI, our bung is able to withstand the rigors of turbocharging, high pressure and high thermal environments.

Why choose Ningbo Shengfa Hardware as your aluminum bung supplier?

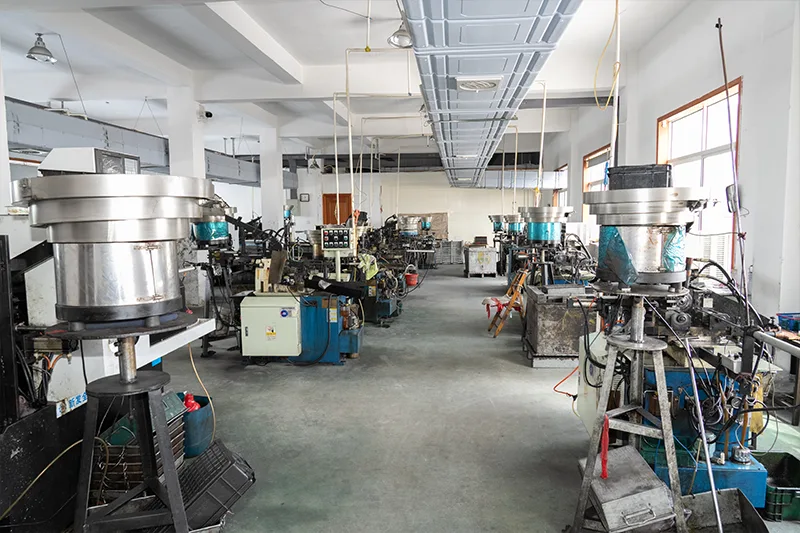

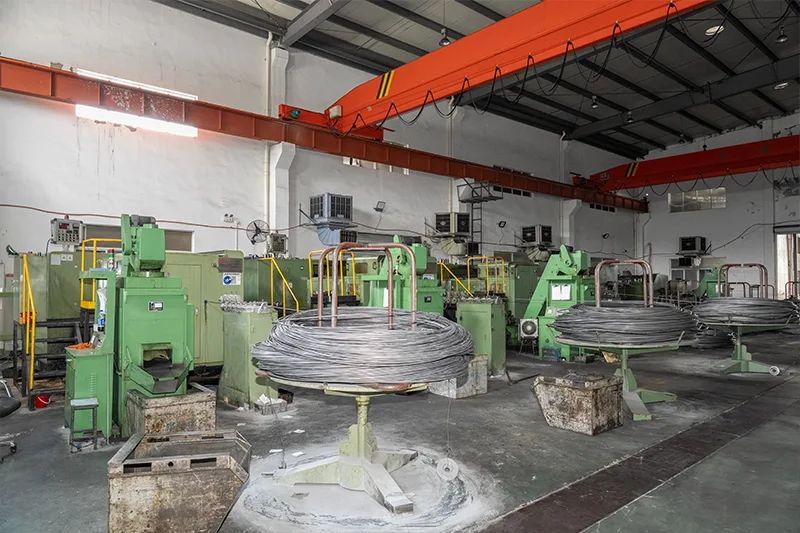

At Ningbo Shengfa Hardware Factory, quality is not just a promise - it is our foundation. We have accumulated more than ten years of experience in precision CNC machining and metal manufacturing, providing high-performance parts for customers in North America, Europe and Southeast Asia.

This is why top brands and manufacturers choose us:

1. Strict quality control: each unit should be checked for dimensional accuracy and thread integrity.
2. Competitive factory pricing: we produce internally - no middlemen.
3. Low MOQ Available: Suitable for custom builders and small batch projects.
4. Custom orders Welcome: Need specific threads or materials? We support full customization.

Frequently Asked Questions (FAQ)

Q: Can this bung be used with E85 or methanol-based fuels?

A: Absolutely. The anodized 6061-T6 aluminum is fully compatible with gasoline, ethanol, E85, and methanol-based fuels.

Q: Does it come with a matching fitting?

A: No, fittings are sold separately. However, our threads are fully compatible with standard NPT male fittings from most major brands.

Q: Can I use MIG welding with this bung?

A: Yes, both MIG and TIG welding are suitable, though TIG is generally preferred for aluminum due to cleaner results.

Q: Do you offer OEM/ODM customization?

A: Yes! We specialize in OEM orders and can modify thread sizes, shapes, or branding to fit your exact requirements.

Whether you're building your dream project in a home garage or producing parts for a global brand, you need components that perform as hard as you do. The Aluminum Female Weldable Bung by Ningbo Shengfa Hardware is the smart, cost-effective solution you can trust.

Contact us today for bulk pricing, samples, or to discuss custom manufacturing needs. Our team is ready to support your business with fast response times and expert technical advice.
